Set up AG53 for Integration with Haldex EBS

a31548 a722e2

Haldex Gen 3—CBL-BEBS-HAL3 and Haldex Gen 4—CBL-BEBS-HAL4

The AG53 Asset Gateway can integrate with Haldex trailer EBS systems to enable advanced braking data and diagnostic insights. This topic outlines the hardware requirements, diagnostic port configuration, and installation steps needed to complete a successful integration. Follow the procedures in order to ensure compatibility and data flow through the CAN Bus (TCAN port).

What You'll Need

Quantity

Description


1

Asset Gateway, model AG53


1

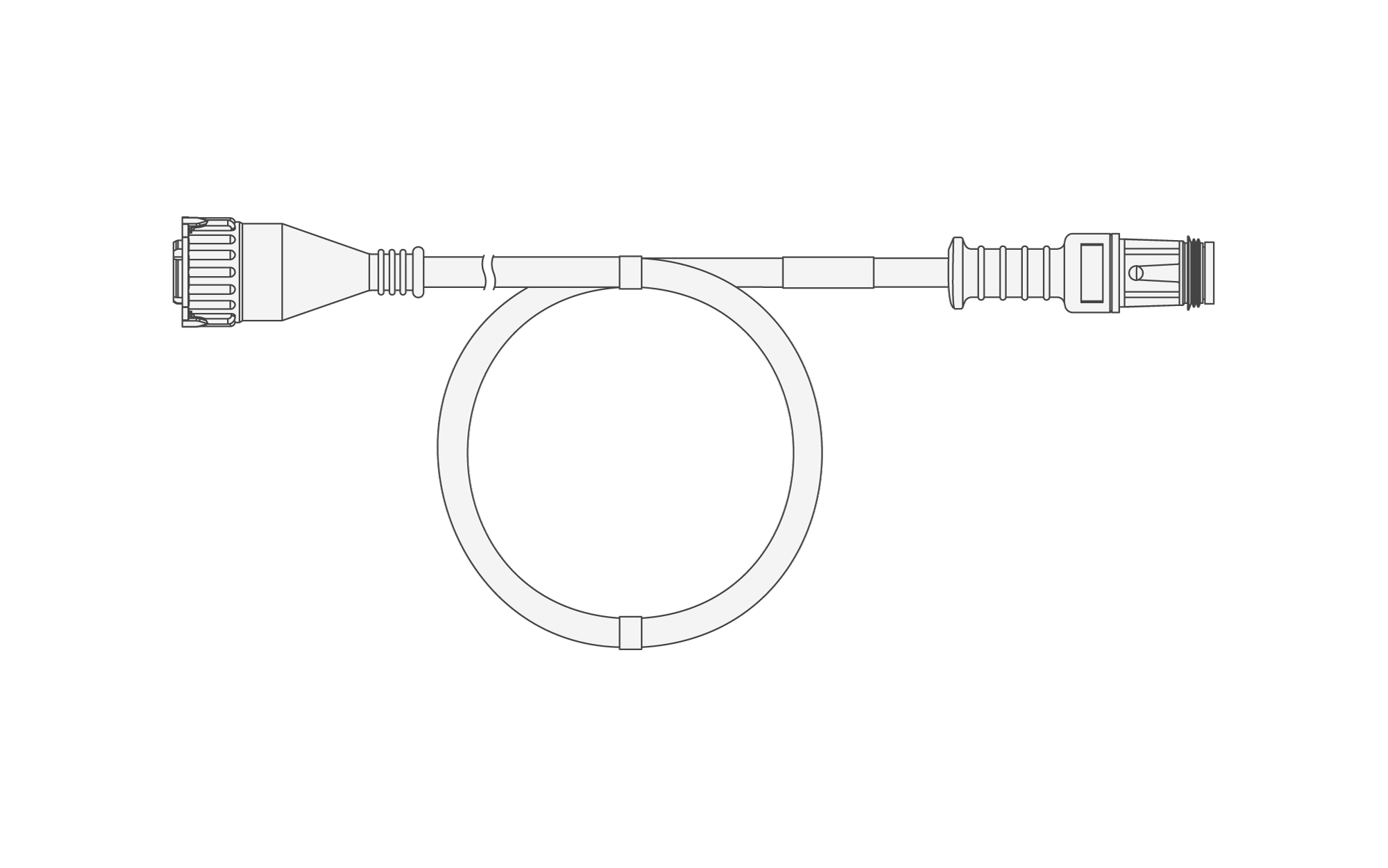

CBL-BEBS-HAL3 or CBL-BEBS-HAL4 (4-pin, male to female)


1

AG53 to 4-pin DIN cable


2

#6 Asset Gateway screws


4

Mountable zip-ties


4

Zip-tie mounting screws


1

Diagonal cutters


1

Drill


1

Bracket (optional)


1

Connector cover (optional)

Configure the Diagnostics Port for Haldex EB+

To collect braking data, the trailer's EBS system must be configured to share telematics over the CAN bus. For Haldex EB+ systems, this includes updating the EBS to up-to-date firmware and setting the CAN Bus (TCAN port) to provide constant power.

The steps below use Jaltest as an example but may also help guide configuration using other diagnostic tools. Contact your Samsara account representative for instructions for other tools.

Note

Samsara does not have access to the diagnostic software required to enable the EBS port. Customers are solely responsible for procuring the necessary diagnostic software and for performing the port enablement themselves or by engaging a qualified install partner.

The instructions provided within this guide regarding EBS port enablement are provided “as-is” as a helpful courtesy and for illustrative purposes only. They are subject to change without notice by the third-party tool provider. Always consult the third-party diagnostics/telematics port provider directly for the most current instructions, technical support, and any troubleshooting related to their tool.

  1. Launch the Jaltest diagnostic software on your connected device.

  2. Navigate to the Haldex EBS system.

    From the main menu, select: TRAILER > TRAILER > HALDEX EB+.

  3. Wait for the system dashboard to load after connection.

  4. Click Parameters to view the available system configurations.

  5. Go to Modify Parameters to access system-level settings.

  6. Enable ISO on CAN bus for diagnostic port communication.

    1. Drill down to: Modify Parameters > Auxiliary Functions and Input Signals > Internal Auxiliary Configuration.

    2. Click ISO ON CAN BUS (ISO ON HCB (TCAN)).

    3. Ensure the setting ISO ON CAN BUS is set to YES.

  7. When done, continue to the next step to Install the AG53 for Integration with Haldex EBS.

Install the AG53 for Integration with Haldex EBS

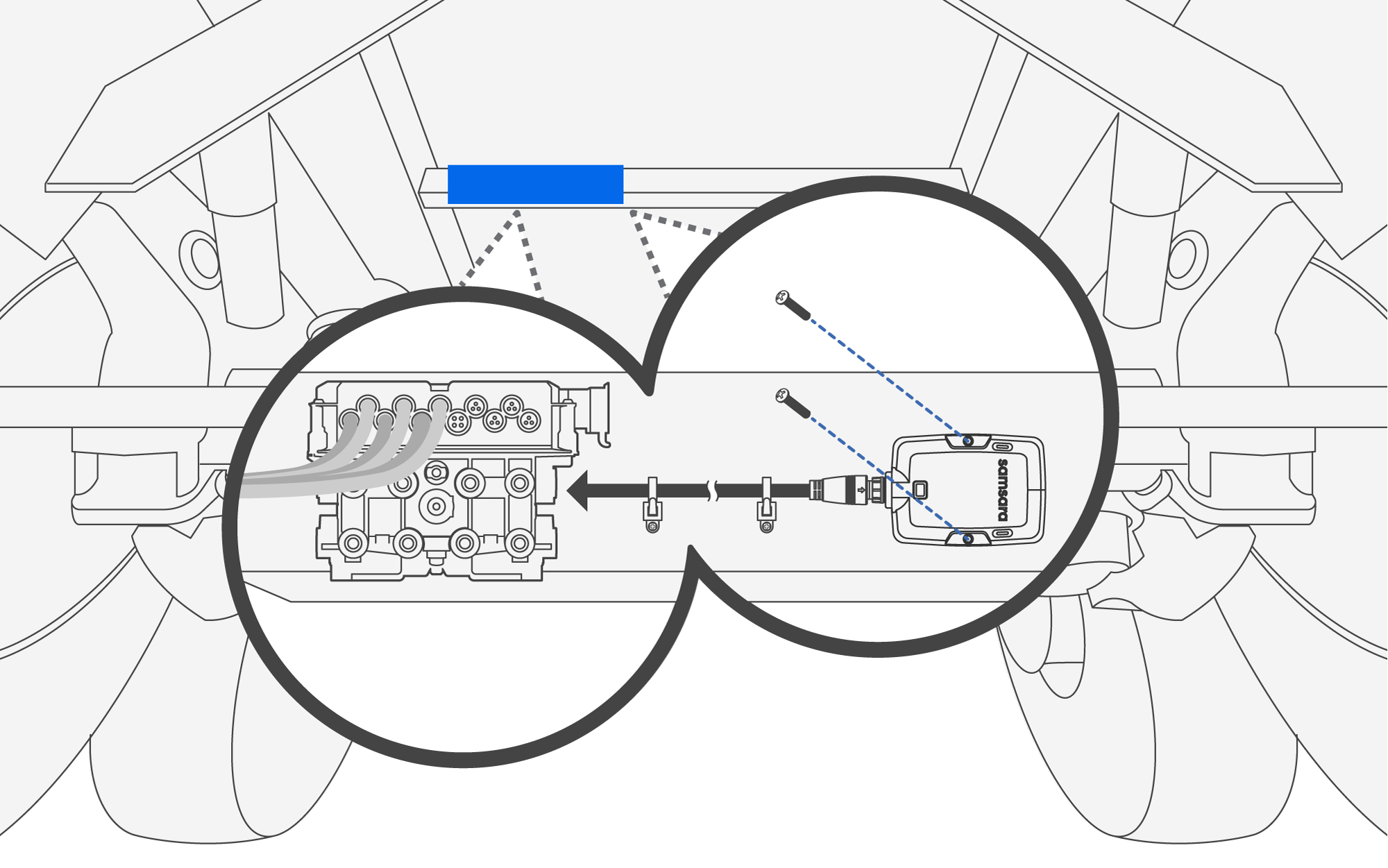

For most trailers, you will find the EBS units at the front of the back axle underneath the trailer.

Before you begin, confirm that you have the correct cables for the make and generation of the EBS.


To install the AG53 for a Haldex EBS systems on your dry-van trailer, use the following workflow:

  1. Position the trailer for access.

    Ensure the underside of the trailer and the EBS ports are fully accessible before starting the install.

  2. Mount the AG to the trailer.


    1. Select the desired mounting location and clean thoroughly.

      Tip

      Consider the following best practices when selecting a mounting location for the AG:

      • Ensure that the device and cables are not at risk of being damaged by moving parts. If possible, test the device in the intended mounting location before final installation.

      • Verify that the cable has adequate clearance to reach both the AG and the electrical connection.

      • For the most reliable connectivity and performance:

        • Mount the AG as close to the trailer edge as possible.

        • Ensure that at least one side of the AG is unobstructed—facing the sky or ground, for example.

        • Position the AG vertically. Avoid mounting it with the back facing directly upward or downward, such as lying flat on its back or front.

      • Avoid installing the device within metallic structures, such as inside a metal trailer. This may interfere with cellular and GPS connectivity.

    2. To mount your AG, follow the corresponding installation instructions for the AG mounting hole type:

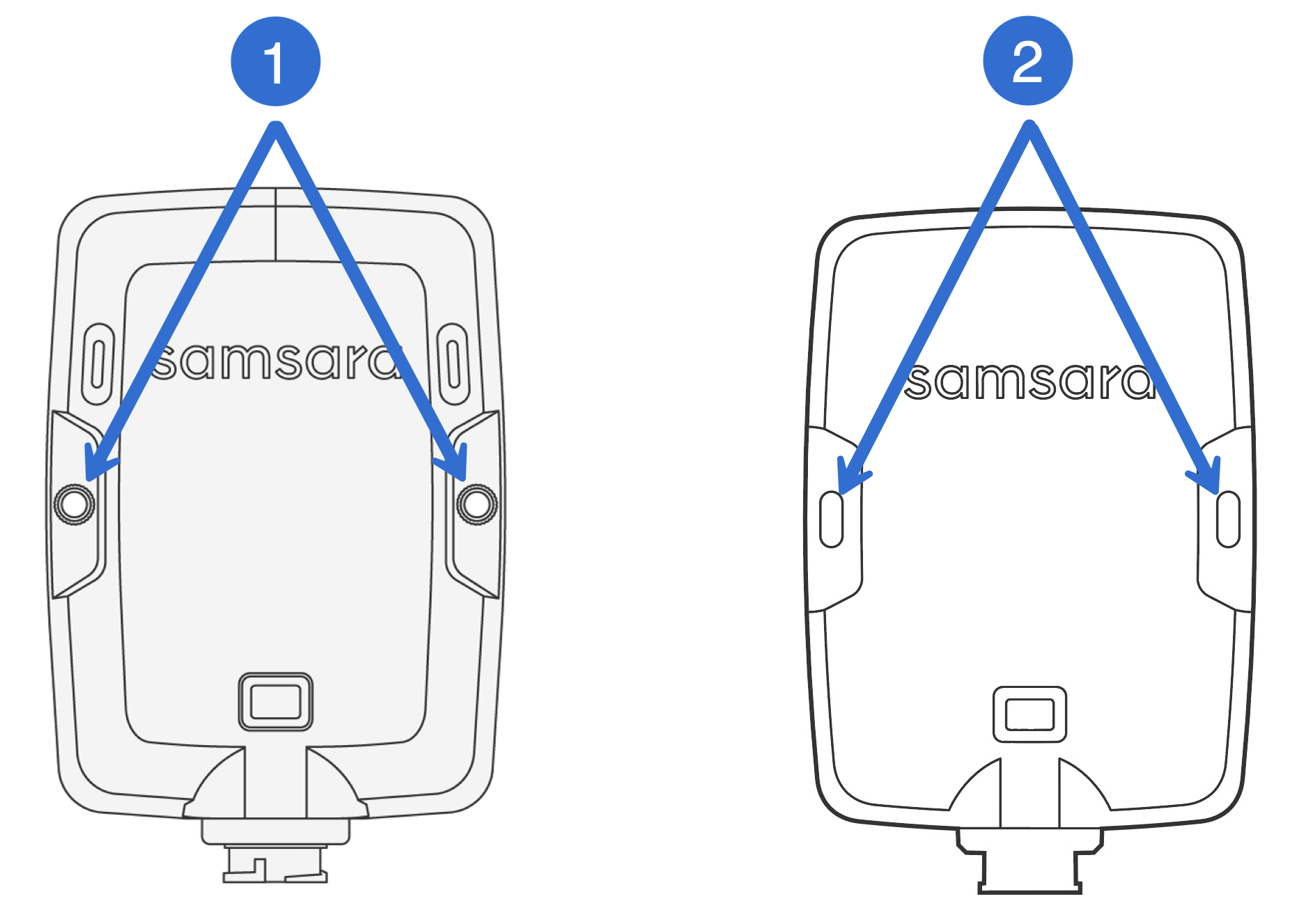

      AG Mount by Hole Type

      1.png Round mounting holes

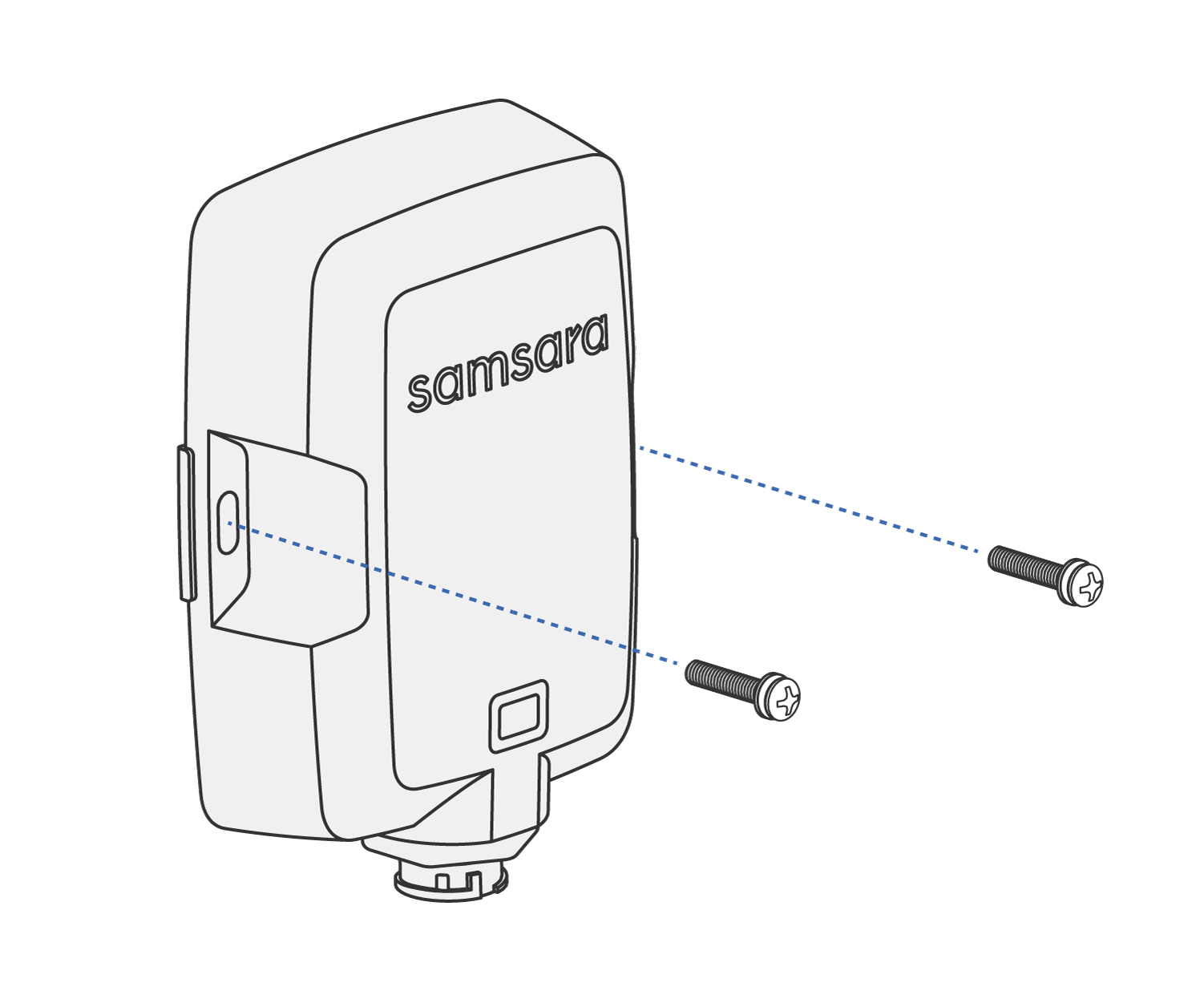

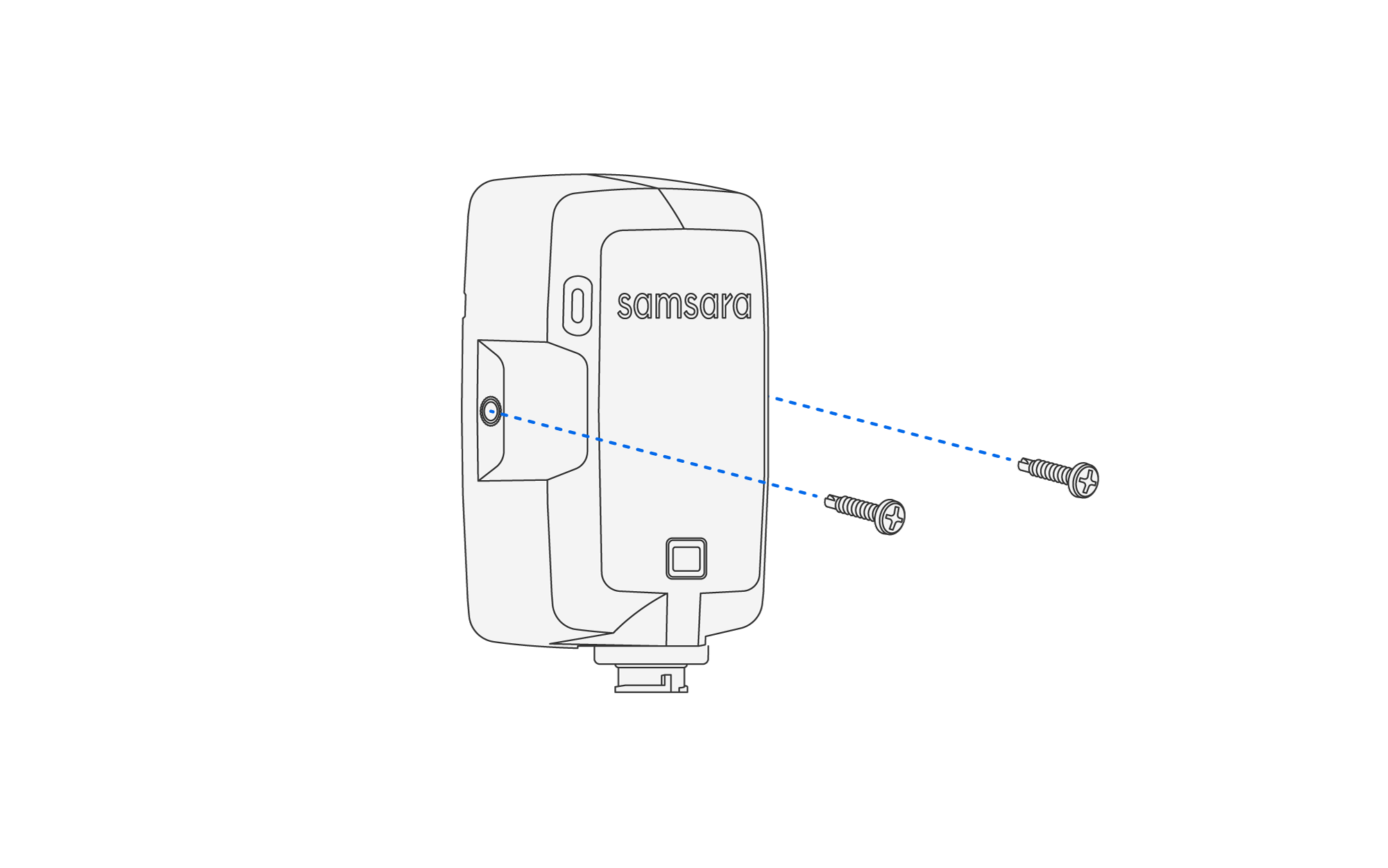

      1. To secure the AG, first drill pilot holes using an 11/16-inch drill bit. Then, attach the AG using the two provided #8 self-drilling screws.

        Caution

        To prevent damage to the mounting tabs, tighten screws to a maximum torque of 1.4 Nm (12.4 lbf-in). If using your own screws, ensure they are not larger than the size specified below.

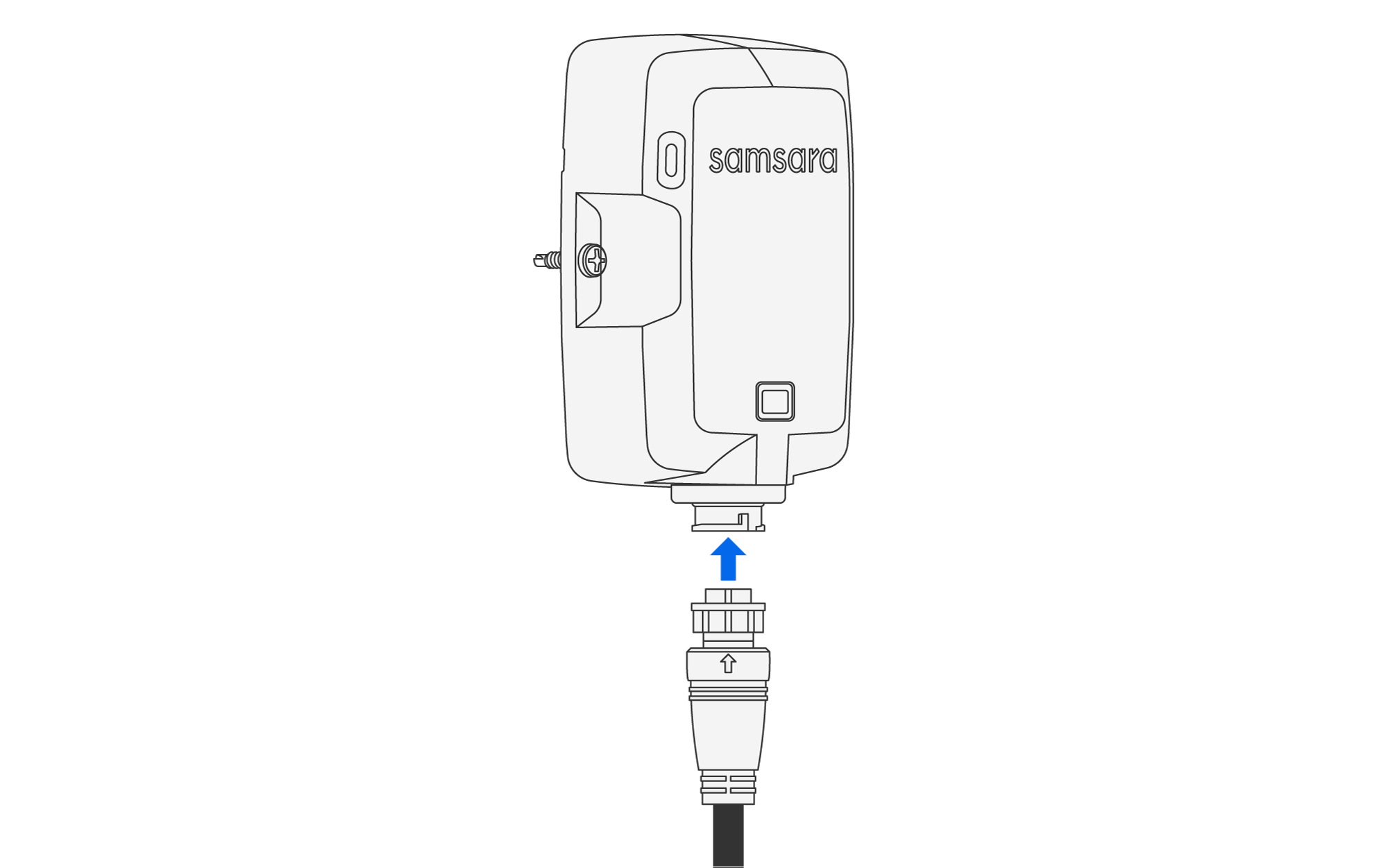

      2. Plug the cable into the AG and twist to lock.


      2.png Oval mounting holes

      1. Attach the mounting bracket to the mounting surface using one of the following methods:

        Caution

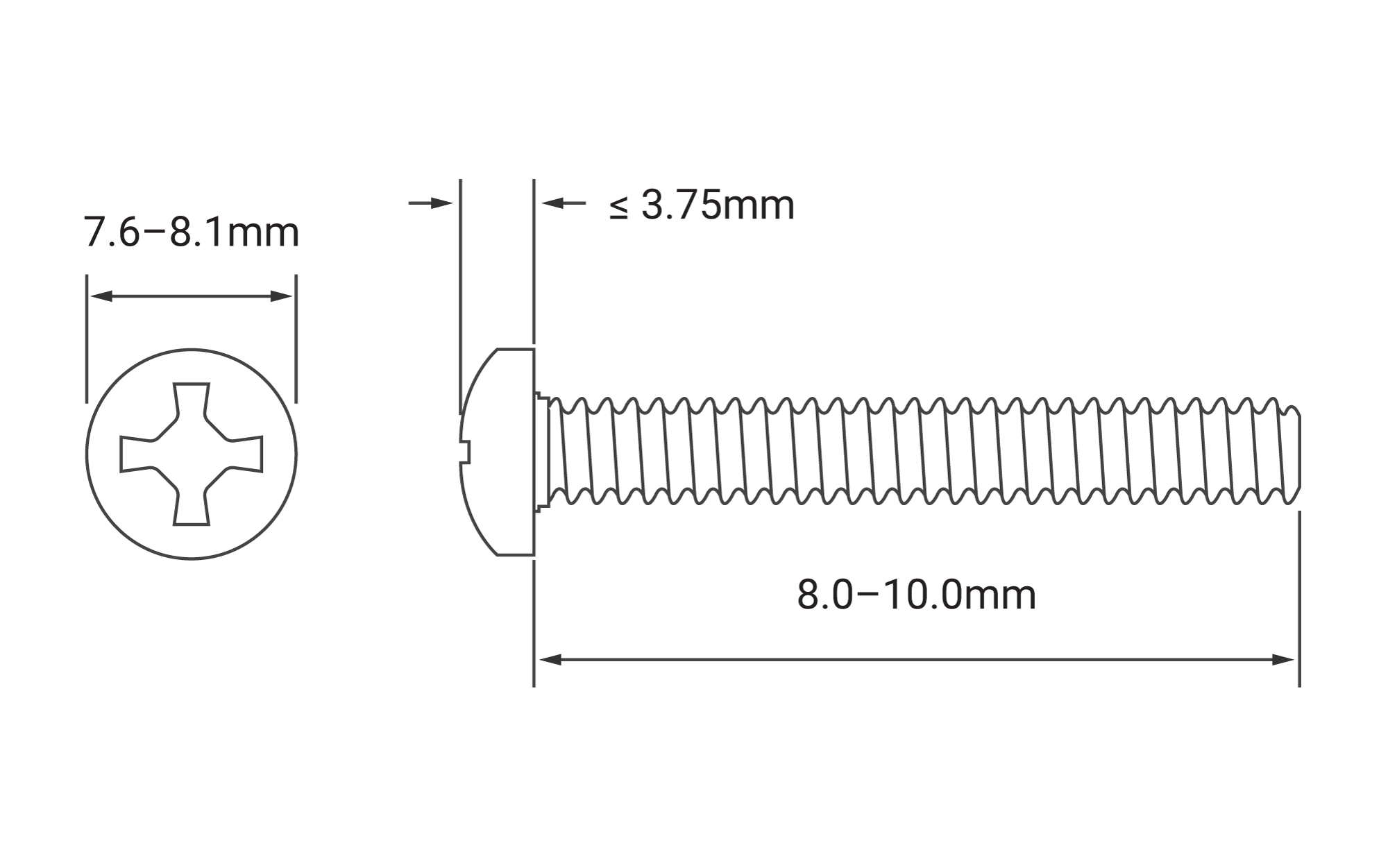

        To prevent damage to the mounting tabs, tighten screws to a maximum torque of 1.4 Nm (12.4 lbf-in). If using your own screws, ensure they are not larger than the size specified below.


        • Self-drilling screws: Use the provided #8 self-drilling screws.


        • Machine screws: Drill through-holes for the mounting bracket and secure it using the provided 6-32 machine screws, washers, and lock nuts.


      2. Securely mount the AG to the bracket using the two provided machine screws.

        Caution

        To prevent damage to the mounting tabs, tighten screws to a maximum torque of 1.4 Nm (12.4 lbf-in). If using your own screws, ensure they are not larger than the size specified below.


      3. Plug the cable into the AG and twist to lock.


  3. Connect the Asset Gateway to the EBS.


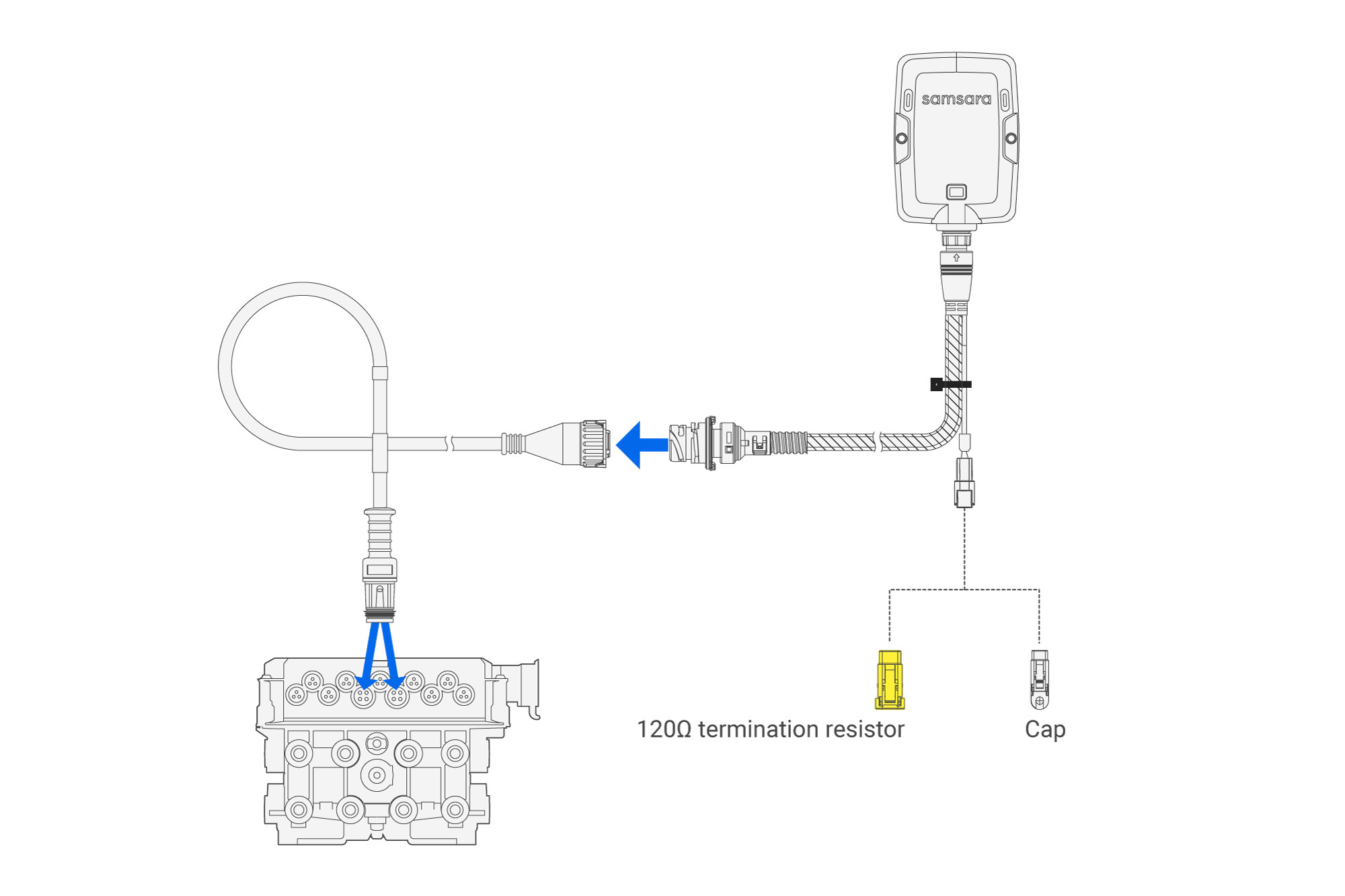

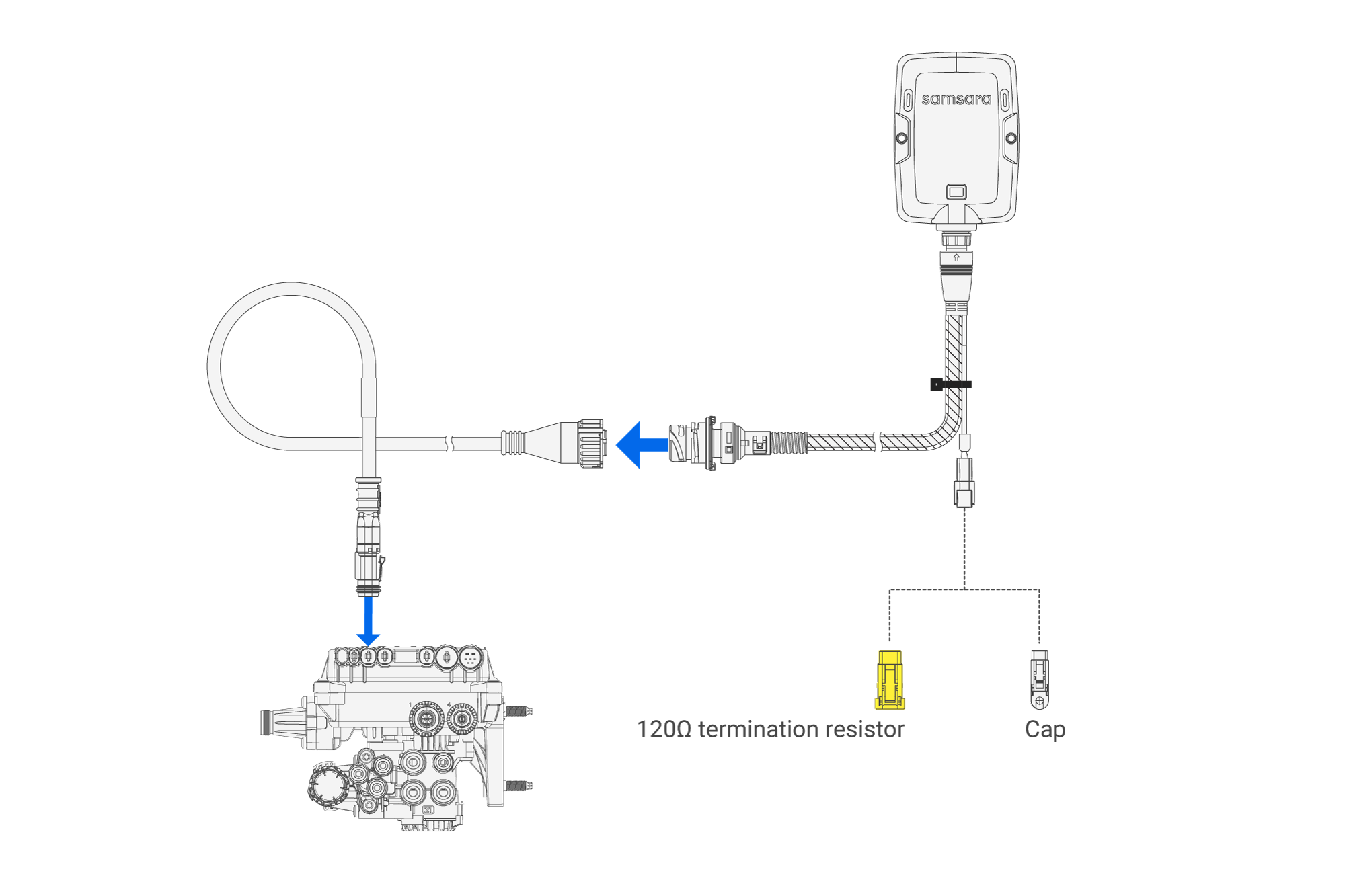

    Left: Haldex 3; Right: Haldex 4

    Use the provided Samsara cable to connect the AG53 to the EBS. Once connected, the AG53 should power on and the LED will light up.

    1. Remove the blanking plug from the DIAG port on the EBS unit.

      1. Use a small tool to press the release tab at the bottom of the connector.

      2. Pull out the blanking cap and ensure the 4-pin connector remains clean.

    2. Connect the Samsara EBS cable to the available DIAG port until you hear a distinct click.

      Note

      For Haldex Gen 4, use the TCAN port. If the TCAN port is already in use, a splitter cable is required for parallel installation. Record the details of any existing connected system for support purposes.

    3. Check CAN bus termination if another device is already connected (e.g., Soft Docking or Info Center).


      1. Power on the EBS system.

      2. Locate the yellow 120Ω terminator cap next to the 14-pin AG connector.

      3. Remove the cap and measure resistance at the connector:

        • If the resistance is 120Ω, leave the setup as-is.

        • If the resistance is 60Ω, replace the yellow terminator with a gray sealing cap.

  4. Activate the AG53 using the Samsara Fleet App.

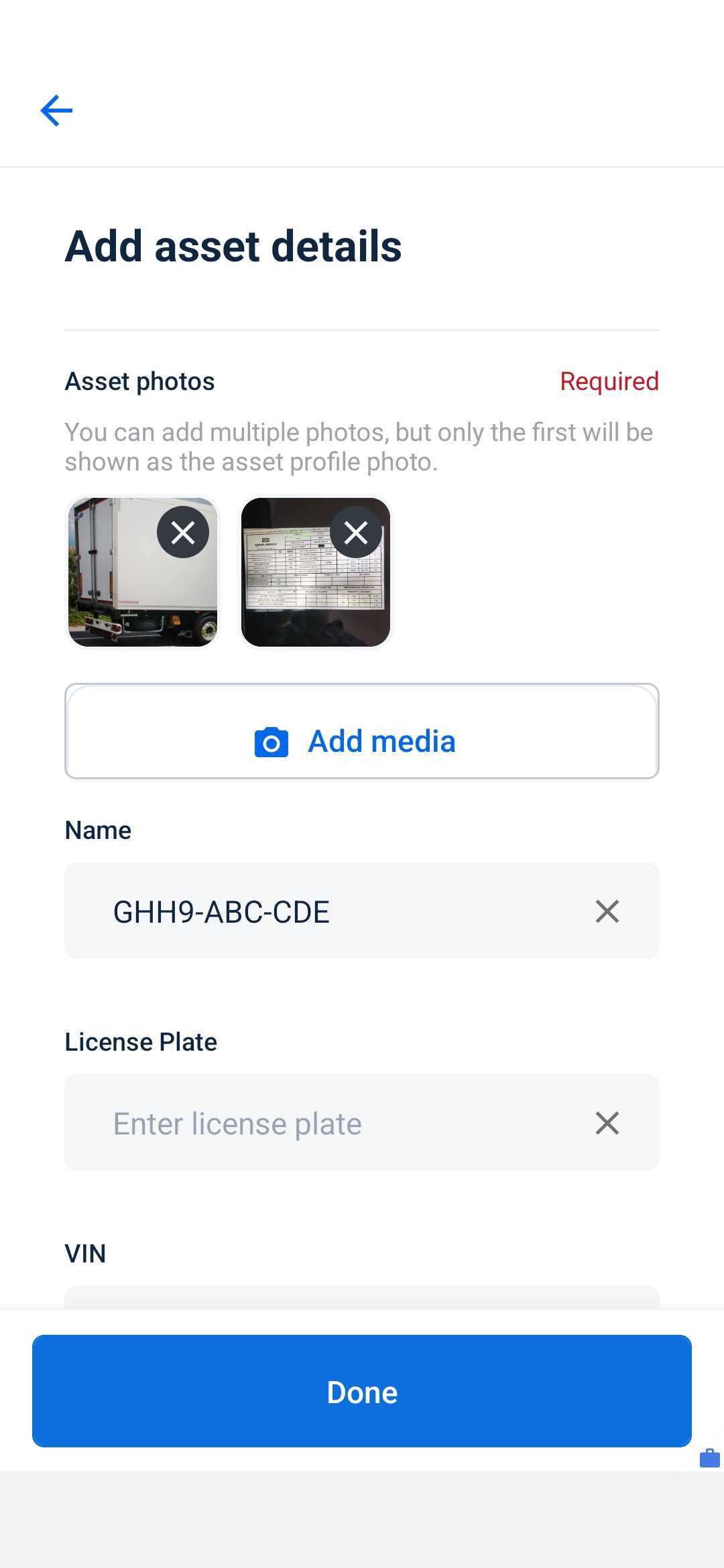

    As part of the activation process, you will upload an asset photo of the trailer’s load plate.


  5. Manually power on the AG53 if no trailer power is available.

    Press the button on the AG53 to trigger a cloud connection. If trailer power is available, confirm activation through the dashboard.

  6. Verify the AG53 is powered and charging.

    In the Samsara dashboard, navigate to the asset overview. Confirm that the power source is listed as External via cable connection and that the battery is charging.

  7. Check for braking data in the dashboard.

    Go to the Braking Performance Report under Maintenance. After a brake event, the status will shift from No Data to Gathering Data.

    Note

    To trigger braking data collection sooner, take the trailer on a short trip.

Important Safety and Use Information

This installation guide contains typical information specific to products manufactured at the time of its publication. The contents of this guide do not constitute a warranty and are for reference only. Consult applicable local laws and ordinances to determine any installation restrictions. It is the installer's responsibility to comply with all applicable laws and ordinances when installing this hardware.

Warning

This product should not be used as the primary method of detecting fires or monitoring whether conditions are hazardous or life threatening.

Warning

Do not attempt to repair this product, use any third party replacement parts with this product, or otherwise modify this product except in accordance with product manuals or as otherwise instructed by Samsara. Failure to do so may cause property damage, lead to physical injury, or void your product warranty.

Warning

Any installation not in accordance with the instructions in the installation guide or otherwise in the Documentation or use of this product other than as described by the relevant IP rating or recommended operating instructions may result in unexpected downtime, system failure, physical injury, or property damage, including water damage. Failure to follow these directions could result in serious injury or death.

Note

This hardware and any associated software may not be compatible with third-party products and/or services and may interfere with the operations of or void warranties for such third party products and/or services.

Warning

Do not install hardware while the vehicle is unsecured or while the vehicle is turned on unless instructed to turn on the vehicle by the installation guide. Do not install or adjust hardware while driving or operating the vehicle. Do not install this hardware in a location that could interfere with the driver's visibility or operation of vehicle controls or near airbag panels or within the working range of an airbag.

Warning

Do not install this hardware on or near flammable or otherwise hazardous materials. This hardware may burst if placed near flammable or other hazardous materials, creating a risk of fire, burn, shock, or other serious injury. This product includes capacitors, which may present a potential fire, explosion, electric shock, or burn hazard. Do not touch any capacitors within this hardware.

Warning

Batteries in the hardware may present a potential fire, explosion, or burn hazard or have a shorter life span if not used in accordance with instructions. Only use [insert battery type] batteries with this hardware and do not remove the battery from the hardware to recharge. Do not recharge, short circuit, crush, disassemble, heat above 140°F/60°C, incinerate, expose the battery or its contents to water, or solder directly to the battery cell. Do not use if battery appears damaged.

Warning

Hardware may sustain water damage if the seal is damaged. Do not use if the seal appears damaged.

Warning

Keep this hardware between -40°F/-40°C to 140°F/60°C when externally powered, -4°F/-20°C to 140°F/60°C when discharging on battery, and 32°F/0°C to 113°F/45°C when charging. Failure to keep this hardware in the specified temperature range may result in safety risks.
